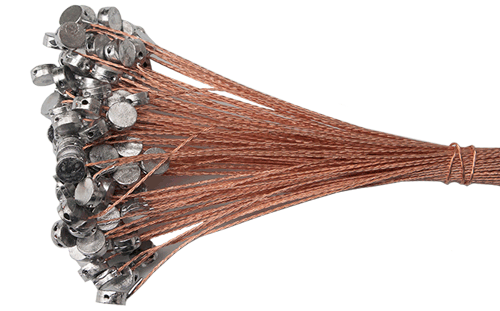

Copper Wire Seals To Mount Signs

Copper wire seals offer tamper resistant mounting of signs and tags. Each 10 inch copper wire seal can be crimped closed to seal mounting connection.

Specifications

• Wire Material: Copper
• Wire Gauge: 27-gauge
• Wire Construction: 4-ply — four 27-gauge copper strands twisted together
• Wire Diameter: 0.871 mm (0.0343″) — total diameter of the finished 4-ply braided wire
• Wire Length: 10″
• Seal Material: Lead
• Breaking Strength: Approx. 48–56 lbs total (12–14 lbs per ply)
• Packaging: 100 seals per package

Features

• 27-gauge, 4-ply copper wire construction provides added strength and durability
• Fits small mounting apertures
• Lead and wire construction offers greater resistance to certain chemicals than some other seal types
• Designed for applications requiring tamper-evident or tamper-resistant security
• Standard 10″ wire length
• Custom sizes may be available for large quantity orders

Applications

• Water, gas, and electric meters
• Valves and pumps
• Transfer hoppers
• Sprinkler systems
• Scales
• Aircraft and automotive parts
• Wire tagging of parts and signs in chemical industries
• Mounting and securing safety signs, tags, and labels
• Outdoor and industrial applications

How to Use

1. Insert the wire tail through the mounting point or aperture

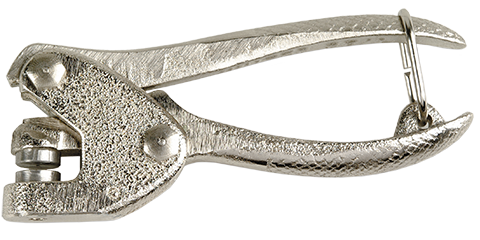

2. Crimp the seal using a compatible hand press (Compatible Hand Press HP-1 for Wire Seals, sold separately)
3. Pull back gently on the tail to verify the seal is properly secured.
