What is Aluminum Composite Material?
Aluminum Composite Material (ACM) is a three-layer panel made from two aluminum sheets bonded to a solid polyethylene core. This construction delivers impressive strength and long-term durability while keeping the panel significantly lighter than solid alumnium alternatives.
Why Choose Aluminum Composite Signs?
Lower Costs
ACM signs typically cost about 20% less than solid aluminum — an ideal option when budget matters without compromising on quality or appearance.
Durable Outdoor Performance
Resists UV, rain, snow, corrosion, and temperature extremes from −50°C to +90°C. The polyester paint system is engineered for long-term outdoor durability.
Lightweight
Approximately 50% lighter than solid aluminum, making ACM signs significantly easier to handle, install, and ship across your facilities.
Smooth, Professional Finish
The flat composite structure provides an excellent print surface, delivering sharp graphics and vibrant colors for professional-quality signage.
Typical Applications
Aluminum Composite signs are ideal for:
- Safety Signs
- Facility and Warehouse Signage
- Parking Signs
- Property and Security Signs
- Fire and Emergency Signage
- Wayfinding and Direction Signange
Aluminum Composite works well for both indoor and outdoor installations in most commercial environments.
Aluminum Composite vs Aluminum
| Feature | Aluminum Composite | Solid Aluminum |
|---|---|---|
| Cost | Lower | Higher |
| Weight | Lightweight | Heavier |
| Best For | Facility Signage | Traffic Signage |
| Durability | Excellent | Maximum |
When to Use Solid Aluminum Instead
While Aluminum Composite is suitable for most signange applications, solid aluminum is still recommended for:
- Highway or DOT traffic signs
- Extreme wind environments
- Locations with repeated heavy impacts (such as forklift strike zones)
- Signs requiring welding or powder coating

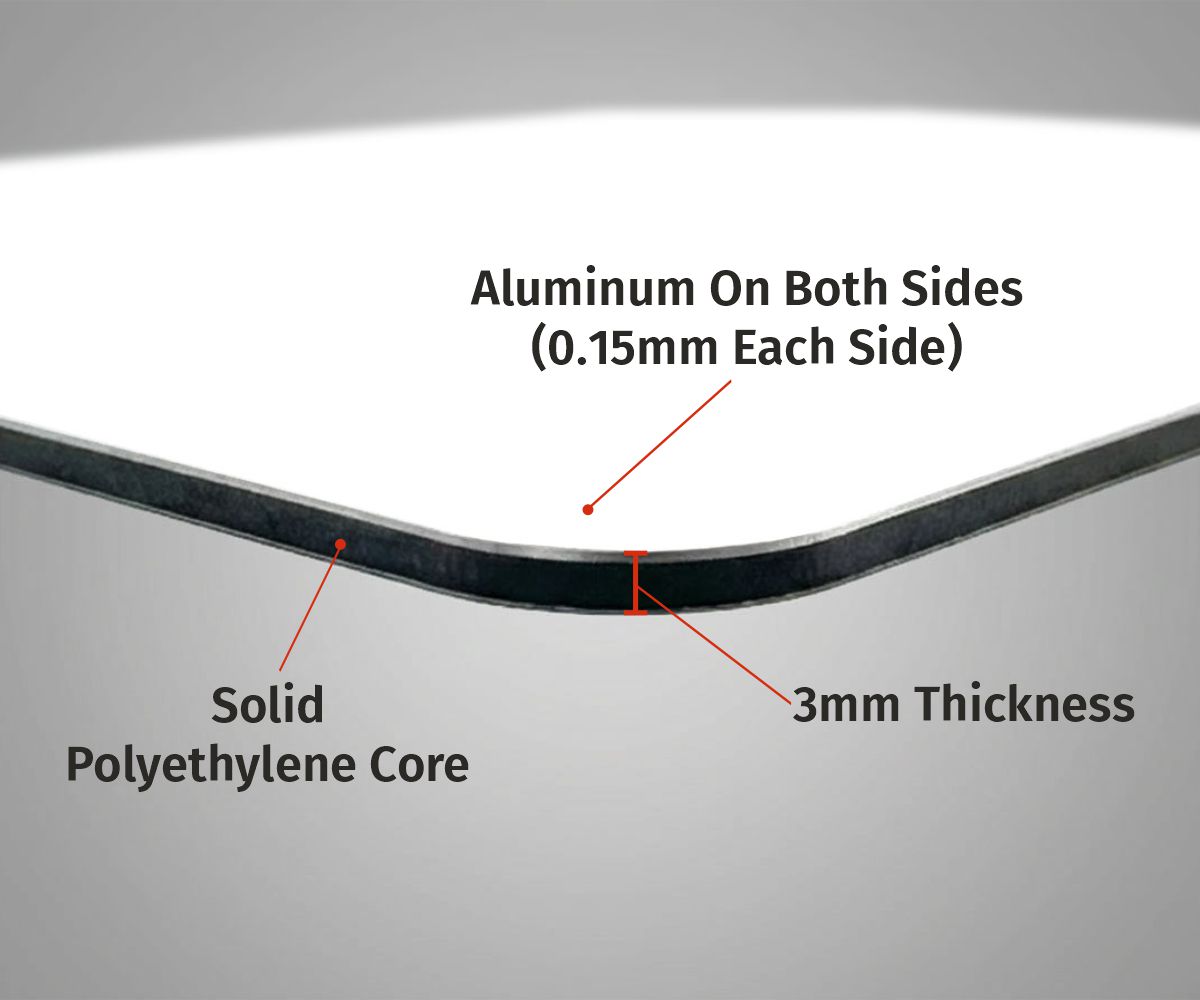

Material Specifications
| Property | Specification |
|---|---|
| Thickness | 3mm |
| Aluminum Skin | 0.15mm each side |
| Core | Solid Polyethylene |
| Finish | Polyester coated aluminum |
| Temperature Resistance | -50°C to +90°C |
| Outdoor Durability | Up to 5 years |
| Core Composition | LDPE (Low Density Polyethylene) |
Compliance
Safety signs printed on Aluminum Composite panels fully meet OSHA and ANSI Z535 sign design requirements, since these standards govern sign colors, symbols, and layout rather than the substrate material itself.
